TOMZN TOM7Z-250/2300 150A 2P DC MCCB – 1000V

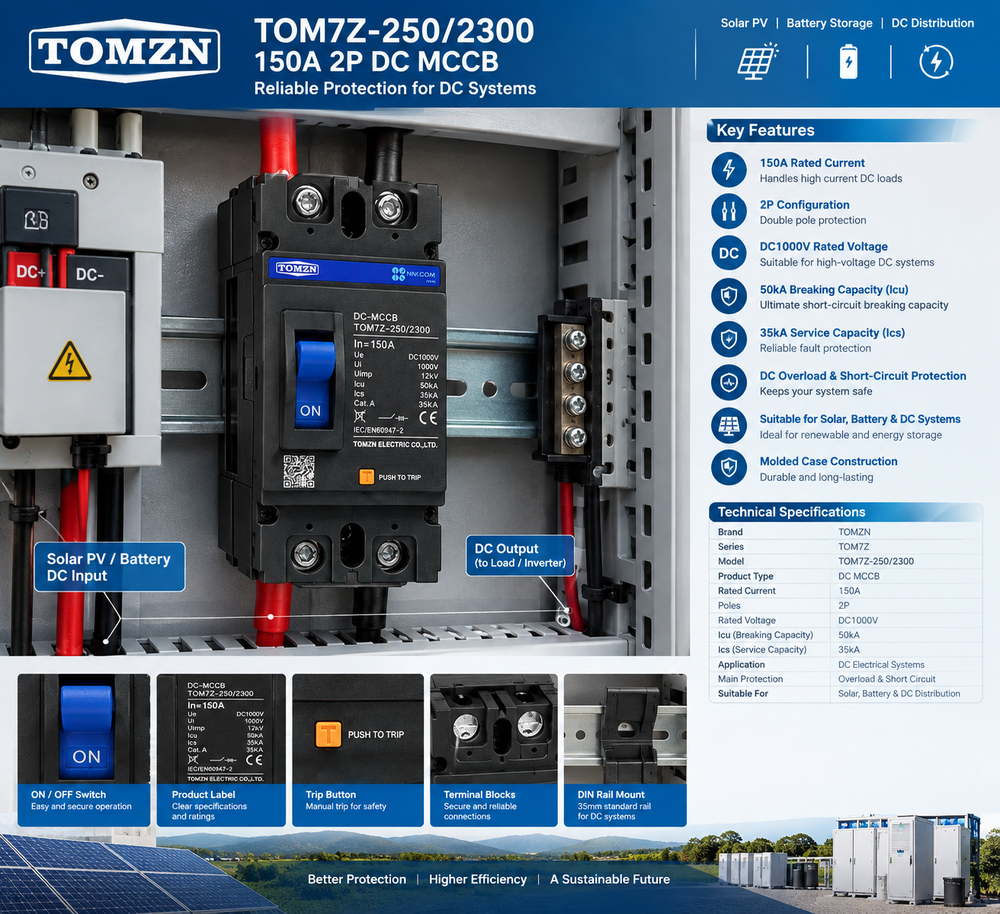

The TOMZN TOM7Z-250/2300 150A 2P DC MCCB is a high-voltage DC molded case circuit breaker designed for protection and switching in DC electrical systems. With a 150A rated current, 2-pole configuration and DC1000V rated voltage, it is suitable for applications including solar PV systems, battery banks, energy storage systems and industrial DC power distribution.

The TOM7Z series is designed for DC circuit protection against overload and short-circuit conditions. The 150A version is specified with a 50kA ultimate breaking capacity (Icu) and 35kA service breaking capacity (Ics) in current product documentation and listings.

Key Features

  • 150A rated current
  • 2-pole (2P) configuration
  • DC1000V rated voltage
  • 50kA ultimate breaking capacity (Icu)
  • 35kA service breaking capacity (Ics)
  • Designed for DC overload protection
  • Designed for DC short-circuit protection
  • Suitable for solar PV and battery energy-storage applications
  • Suitable for DC power-distribution systems

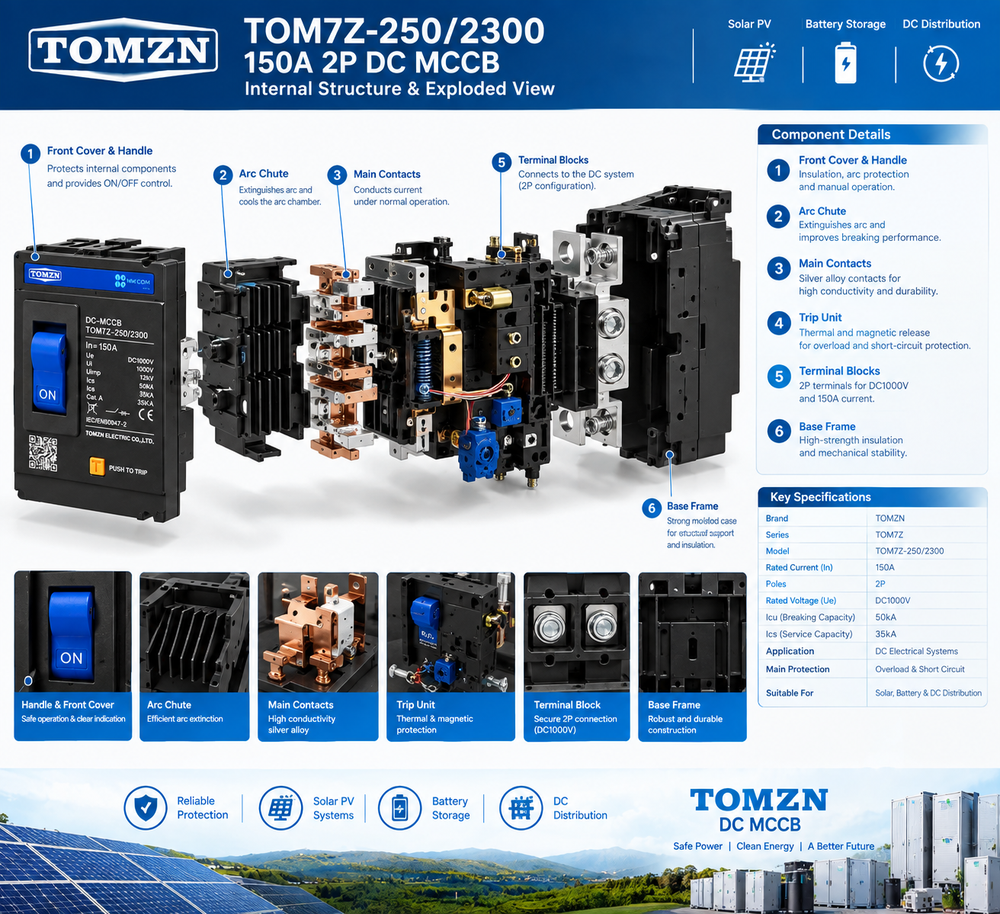

  • Heavy-duty molded-case construction
  • TOMZN TOM7Z-250/2300 model

150A DC MCCB for Solar & Battery Systems

The TOMZN TOM7Z-250/2300 provides circuit protection for high-current DC applications where a dedicated DC-rated breaker is required.

Its 150A rating and DC1000V voltage capability make it suitable for use in appropriately designed solar and energy-storage systems, including battery banks and DC distribution circuits.

Unlike an AC circuit breaker, this product is specifically specified for DC applications, making correct DC-rated circuit protection important when designing solar and battery systems.

High Breaking Capacity

The 150A TOM7Z-250/2300 is listed with an ultimate breaking capacity of 50kA and a service breaking capacity of 35kA. These ratings indicate the breaker’s specified ability to interrupt fault currents under the applicable test conditions.

Applications

The TOMZN 150A DC MCCB can be used for:

  • Solar PV systems
  • Solar DC distribution
  • Battery banks
  • Lithium battery systems
  • Energy storage systems
  • DC power distribution
  • Industrial DC installations
  • DC protection between battery and inverter systems
  • High-current DC electrical circuits

Technical Specifications

Specification Details
Brand TOMZN
Series TOM7Z
Model TOM7Z-250/2300
Product Type DC Molded Case Circuit Breaker (MCCB)
Rated Current 150A
Number of Poles 2P
Rated Voltage DC1000V
Ultimate Breaking Capacity (Icu) 50kA
Service Breaking Capacity (Ics) 35kA
Application DC Electrical Systems
Main Protection Overload & Short Circuit
Suitable Systems Solar, Battery & DC Distribution

The 150A, 2P, DC1000V and 50kA/35kA ratings are supported by current product documentation/listings for the TOM7Z series.

Frequently Asked Questions

What is the rating of the TOMZN TOM7Z-250/2300?

The TOM7Z-250/2300 version covered here has a 150A rated current.

Is the TOMZN TOM7Z-250/2300 a DC circuit breaker?

Yes. It is designed for DC electrical applications and is rated up to DC1000V.

How many poles does the TOM7Z-250/2300 have?

The product is a 2-pole (2P) DC circuit breaker.

What is the breaking capacity of the 150A TOMZN DC MCCB?

The 150A version is specified with 50kA Icu and 35kA Ics in current product documentation/listings.

Can the TOMZN 150A DC MCCB be used for solar systems?

Yes. Current product listings specifically position the TOM7Z series for solar PV, battery and DC distribution applications.

Can it be used for battery protection?

Yes. The TOM7Z-250/2300 is marketed for DC protection applications including battery banks and energy-storage systems.

Additional Information
Additional Information
x
Brand: TOMZN Series: TOM7Z Model: TOM7Z-250/2300 Product Type: DC Molded Case Circuit Breaker (MCCB) Rated Current: 150A Number of Poles: 2P Rated Voltage: DC1000V Ultimate Breaking Capacity (Icu): 50kA Service Breaking Capacity (Ics): 35kA Application: DC Electrical Systems Protection: Overload & Short Circuit Suitable Applications: Solar PV, Battery & DC Power Distribution
Shipping & Return
Shipping & Return
x
Shipping Orders are shipped according to product availability and the delivery options available at checkout. Returns & Exchanges Return or exchange requests are handled according to CH Power Solutions' return policy. Products must meet the applicable return conditions. Damaged or Incorrect Product If you receive a damaged, defective, or incorrect product, please contact CH Power Solutions with your order details so the issue can be reviewed.
Custom Tab
Custom Tab
x
Applications & Installation The TOMZN TOM7Z-250/2300 150A 2P DC MCCB is designed for high-current DC electrical protection and distribution applications. Suitable Applications: - Solar PV systems - Battery banks - Lithium battery energy storage - Solar energy storage systems - DC distribution panels - Battery-to-inverter DC circuits - Industrial DC installations - High-current DC electrical systems Key Configuration: - 150A rated current - 2P configuration - DC1000V rated voltage - 50kA Icu - 35kA Ics - DC overload and short-circuit protection For installation, cable sizing, fault-current calculations and protective-device coordination should be determined according to the actual electrical system and applicable installation requirements.
