Solis S6-EH Series Hybrid Solar Inverter – 8kW, 10kW & 12kW
Solis S6-EH Series Hybrid Solar Inverter – 8kW, 10kW & 12kW

Solis S6-EH Series Hybrid Solar Inverter – 8kW, 10kW & 12kW

The Solis S6-EH Series Hybrid Solar Inverter is a versatile energy-storage solution designed for modern residential and...
Vendor: Solis
Availability: In stock
Product type: Hybrid solar inverter
Rs.318,000.00
Rs.318,000.00
Please hurry! Only 15 left in stock
Model: 8KW
Subtotal: Rs.318,000.00
Ask an expert
10 customers are viewing this product
Warranty 5 years brand warrenty.

Partial Advance Payment Required

You Have to Pay Partial Payment in Advance for Order Confirmation.

Full Advance Payment Required

You Have to Pay Partial Payment in Advance for Order Confirmation.

Heavy Weight Cargo Delivery

Heavy weight parcels will be dispatched through Cargo Service. Customer will pay Cargo charges on delivery.

Shipping Time

Estimated Shipping Time: 48–72 Hours.
Description
Description
x

The Solis S6-EH Series Hybrid Solar Inverter is a versatile energy-storage solution designed for modern residential and commercial solar systems. Available across 8kW, 10kW and 12kW configurations, the series combines solar PV generation, battery energy storage and grid power to provide flexible energy management and backup power.

Depending on the selected model, the Solis S6-EH series supports Li-ion and lead-acid batteries, high battery charge/discharge power, advanced MPPT solar tracking, generator integration, peak shaving, automatic UPS operation and flexible single-phase or three-phase system configurations.

With advanced protection, high PV capacity, scalable operation and IP66-rated protection on the supplied 8kW and 10kW specifications, the series is suitable for a wide range of indoor and outdoor solar energy applications.

Key Features

Advanced Hybrid Solar Energy Management

The Solis S6-EH series combines solar panels, battery storage and grid power in a single hybrid energy-management system. It is designed to maximize solar utilization while providing flexible battery charging, discharging and backup operation.

8kW, 10kW and 12kW Power Options

The supplied product range includes:

  • Solis S6-EH1P8K-L-PLUS – 8kW
  • Solis S6-EH1P(3-10)K-L-PLUS family – including the 10kW configuration
  • Solis S6-EH3P12K-H – 12kW High-Voltage Hybrid Inverter

Generator Connectivity

The 8kW configuration supports multiple generator input methods and automatic generator On/Off control, allowing generator operation to be integrated into the energy-management system.

Automatic UPS Backup

The 8kW and 10kW configurations provide backup-power functionality designed to keep essential loads operating during grid interruptions.

The supplied 8kW specification lists <4 ms backup switching and up to 2× rated backup power for 10 seconds, while the original feature text also refers to automatic UPS switching and a 10-second figure. The exact final wording should be confirmed against the manufacturer datasheet before publication.

200% Surge / Backup Overload Capability

The 8kW configuration is specified with 200% surge capability, allowing the backup system to handle short-duration high-demand loads.

Flexible Phase Connection

The supplied 8kW description states support for single-phase and three-phase connections, with systems scalable to up to 36kW in parallel.

The 12kW S6-EH3P12K-H is specifically a three-phase high-voltage hybrid inverter.

High Battery Charge and Discharge Capability

The series supports high battery charge/discharge power for energy storage applications.

  • 8kW configuration: up to 8kW
  • 10kW configuration: up to 10kW
  • 12kW configuration: high-voltage lithium battery system

Lithium and Lead-Acid Battery Compatibility

The supplied 8kW and 10kW specifications support:

  • Li-ion batteries
  • Lead-acid batteries

The 12kW S6-EH3P12K-H is specified for high-voltage lithium-ion batteries.

Customizable Battery Scheduling

The 8kW configuration provides 6 customizable charge/discharge time settings, allowing users to manage when batteries charge and discharge according to system requirements.

Peak Shaving Control

Peak shaving functionality is available with Self-Use and Generator operating modes, helping optimize energy consumption and battery operation.

Multiple MPPT Trackers

The series provides different solar-input configurations depending on model.

The 10kW configuration is specified with 2 MPPT trackers and 4 input strings, while the 12kW high-voltage configuration features 4 MPPT trackers.

IP66 Protection

The supplied 8kW and 10kW specifications list IP66 protection, supporting indoor and outdoor installation where the installation environment is suitable.

Advanced Protection

The supplied 8kW specification includes:

  • Ground fault monitoring
  • DC reverse-polarity protection
  • Integrated AFCI 2.0 — optional
  • Battery protection
  • PV and battery overvoltage protection classification
  • Mains, backup and generator overvoltage protection classification

Solis 8kW Hybrid Inverter – S6-EH1P8K-L-PLUS

The Solis S6-EH1P8K-L-PLUS is an 8kW hybrid solar inverter designed for solar, battery, grid and generator integration.

8kW Key Highlights

  • Rated power: 8kW
  • Recommended maximum PV array: 16kW
  • Battery voltage range: 40–60V
  • Maximum charge/discharge power: 8kW
  • Li-ion / Lead-acid battery support
  • Generator connectivity
  • Automatic generator On/Off control
  • Peak shaving
  • Self-Use and Generator modes
  • 6 customizable charge/discharge time settings
  • Automatic UPS operation
  • Up to 200% backup surge capability
  • Flexible phase connection
  • Up to 36kW parallel operation
  • IP66 protection
  • 7.0-inch LCD
  • Bluetooth + APP
  • CAN / RS485 communication
  • Optional Wi-Fi / GPRS / LAN
  • Natural cooling + intelligent fan cooling
  • Model year: 2025

8kW Technical Specifications

Parameter Specification
Model Solis S6-EH1P8K-L-PLUS
Rated Power 8kW
Recommended Max. PV Array Size 16kW
Battery Voltage Range 40–60V
Battery Type Li-ion / Lead-acid
Max. Charge / Discharge Power 8kW
Max. Charge / Discharge Current 135A / 190A — supplied data conflict; verify
Battery Communication CAN / RS485
Rated Output Power — Grid 8kW
Max. Apparent Output Power — Grid 8kVA
Operation Phase L / N / PE
Rated Grid Voltage 220V / 230V
Rated Grid Frequency 50Hz / 60Hz
Rated Grid Output Current 36.4A / 34.8A
Max. Output Current 36.4A / 34.8A
Power Factor >0.99 (0.8 leading – 0.8 lagging)
Grid Input Voltage Range 187–253V
Max. Grid Input Current 50A
Grid Frequency Range 45–55Hz / 55–65Hz
Rated Backup Output Power 8kW
Max. Apparent Backup Output 2× rated power for 10 seconds
Backup Switch Time <4ms
Backup Voltage L / N / PE, 220V / 230V
Backup Frequency 50Hz / 60Hz
Rated Backup Output Current 36.4A / 34.8A
Max. AC Passthrough Current 50A
Max. Efficiency 96.2%
EU Efficiency 96.1%
Battery Charged by PV / AC Max. Efficiency 95.3% / 93.9%
Battery Discharged to AC Max. Efficiency 93.8%
Ground Fault Monitoring Yes
DC Reverse-Polarity Protection Yes
Integrated AFCI 2.0 Optional
Protection Class / Overvoltage Category I / II (PV & BAT), III (Mains, Backup & Gen)
Dimensions (W × H × D) 335 × 560 × 253mm
Weight 23.5kg
Topology High-frequency isolation (for battery)
Operating Temperature -40 to +60°C
Ingress Protection IP66
Cooling Natural cooling + intelligent fan cooling
Maximum Operating Altitude 3000m
DC Connection MC4 Plug (PV) / Terminal Block (BAT)
AC Connection Terminal Block
Display 7.0" LCD + Bluetooth + APP
Communication RS485, CAN; Optional Wi-Fi, GPRS, LAN

Solis 10kW Hybrid Inverter – S6-EH1P(3-10)K-L-PLUS

The Solis S6-EH1P(3-10)K-L-PLUS family provides a higher-capacity single-phase hybrid inverter configuration for residential and small commercial solar systems.

The supplied 10kW specifications include 10kW rated output, up to 20kW recommended PV array size, 2 MPPT trackers with 4 input strings, 10kW backup capability and high battery charge/discharge capacity.

10kW Key Highlights

  • 10kW single-phase hybrid inverter
  • IP66 protection
  • Indoor and outdoor installation
  • 2 MPPT trackers
  • 4 input strings
  • Li-ion and Lead-acid battery support
  • 40–60V battery range
  • 10kW maximum charge/discharge power
  • Up to 210A charge/discharge current
  • 10kW grid output
  • 10kVA maximum apparent output
  • 10kW backup output
  • Up to 20kW recommended PV array
  • Up to 16kW usable PV input power
  • MPPT voltage range: 90–435V
  • Advanced grid and battery management

10kW Technical Specifications

Parameter Specification
Model / Series Solis S6-EH1P(3-10)K-L-PLUS
Rated Power 10kW
Recommended Max. PV Array Size 20kW
Max. Usable PV Input Power 16kW
Max. Input Current 42A / 42A
Max. Short-Circuit Current 48A / 48A
MPPT / Max. Input Strings 2 MPPT / 4 Strings
Max. Charge / Discharge Power 10kW
Max. Charge / Discharge Current 210A
Battery Type Li-ion / Lead-acid
Battery Voltage Range 40–60V
Rated Grid Output Power 10kW
Max. Apparent Grid Output 10kVA
Rated Grid Output Current 45.5A / 43.5A
Max. Grid Input Current 65A
Rated Backup Output Power 10kW
Rated Backup Output Current 45.5A / 43.5A
Rated Grid Voltage L/N/PE, 220V / 230V
MPPT Voltage Range 90–435V
Ingress Protection IP66

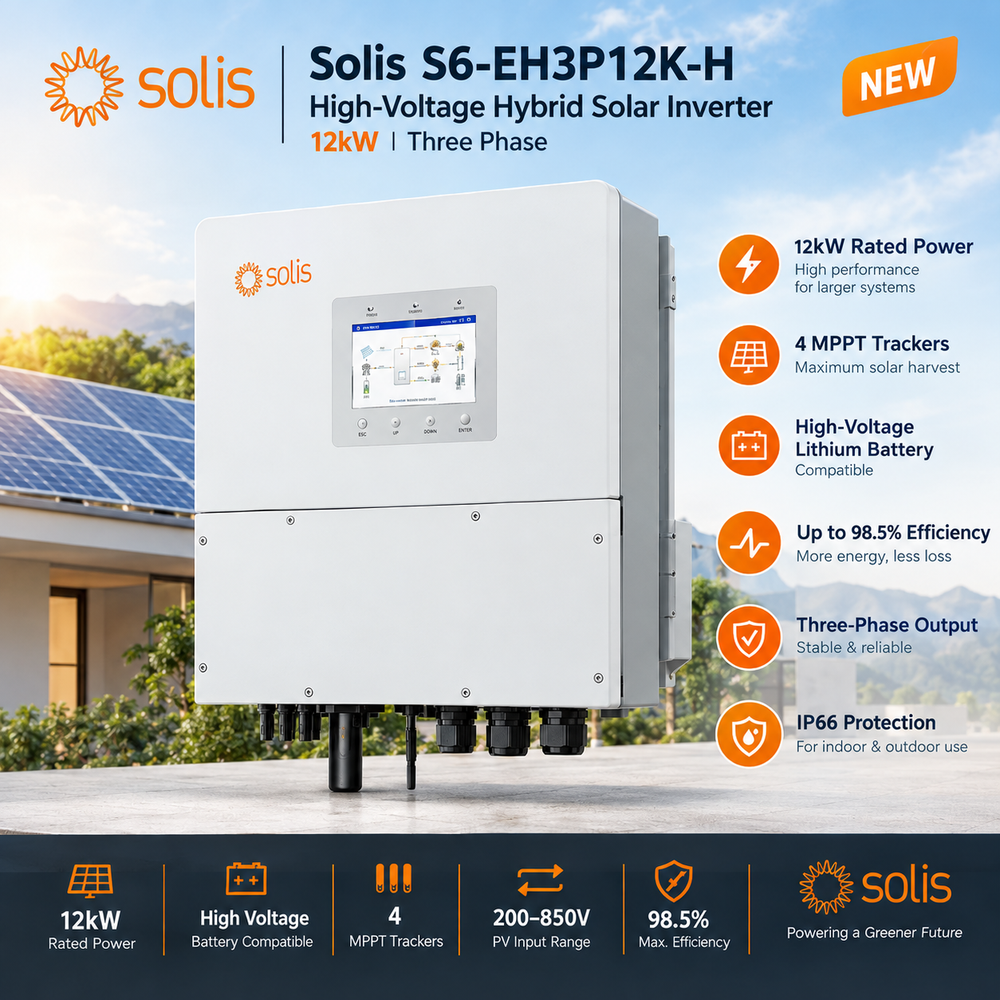

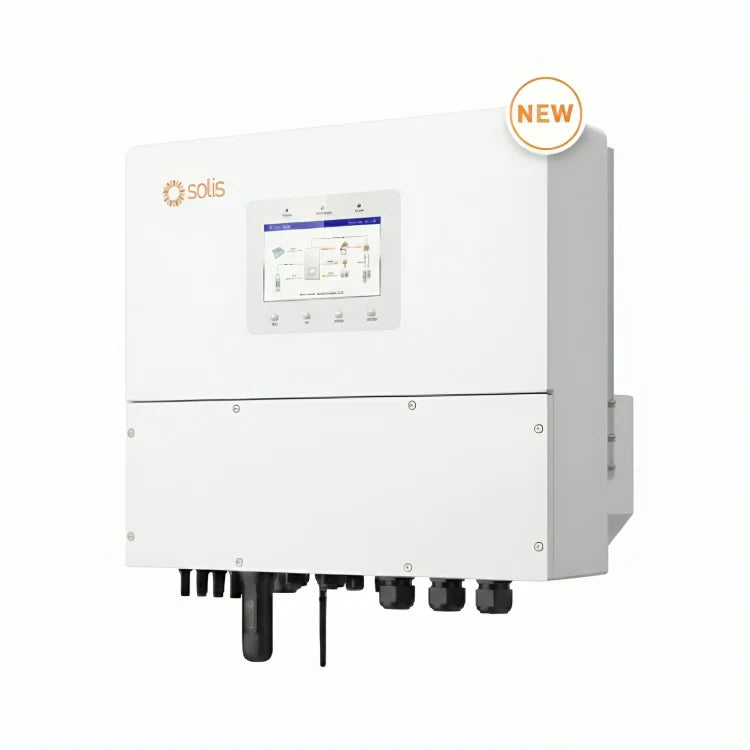

Solis 12kW High-Voltage Hybrid Inverter – S6-EH3P12K-H

The Solis S6-EH3P12K-H is a high-voltage hybrid solar inverter designed for residential and commercial applications requiring higher-capacity three-phase energy management.

It integrates solar PV, high-voltage lithium batteries and grid power, providing a high-capacity hybrid platform with multiple MPPT trackers and high solar conversion efficiency.

12kW Key Highlights

  • Model: Solis S6-EH3P12K-H
  • Rated power: 12,000W
  • Hybrid Solar + Battery + Grid operation
  • High-voltage lithium-ion battery compatible
  • Up to 98.5% efficiency
  • 4 MPPT trackers
  • Maximum DC input voltage: 1000V
  • Input voltage range: 200–850V
  • Stable three-phase output
  • Designed for residential and commercial solar systems

12kW Technical Specifications

Parameter Specification
Model Solis S6-EH3P12K-H
Inverter Type Hybrid (Solar + Battery + Grid), High Voltage
Rated Power 12,000W
Efficiency Up to 98.5%
MPPT Input 4 MPPT Trackers
Battery Compatibility High-Voltage Lithium-ion Batteries
Max. DC Input Voltage 1000V
Input Voltage Range 200–850V
Output Type Three Phase

Applications

The Solis S6-EH series can be used for a range of solar and energy-storage applications, including:

Residential Solar Systems
Hybrid solar installations with battery storage, grid power and backup loads.

Commercial Solar Systems
Higher-capacity energy management for commercial and small business installations.

Solar + Battery Energy Storage
Store solar energy during periods of generation and use stored energy when required.

Backup Power Systems
Provide backup power during grid outages with model-specific UPS and overload capabilities.

Generator-Integrated Solar Systems
The 8kW configuration supports generator connectivity and automatic generator control.

Peak Shaving Applications
Self-Use and Generator operating modes support energy-management strategies designed around consumption and peak demand.

Battery Compatibility

Battery compatibility depends on the selected model.

The supplied 8kW and 10kW configurations support:

  • Li-ion batteries
  • Lead-acid batteries
  • 40–60V battery range

The supplied 12kW S6-EH3P12K-H specification is designed for:

  • High-voltage lithium-ion batteries

Solar PV & MPPT Configuration

The supplied models provide different solar-input capabilities.

The 8kW configuration supports a recommended maximum PV array of 16kW.

The 10kW configuration supports a recommended maximum PV array of 20kW, with up to 16kW usable PV input power, 2 MPPT trackers and 4 input strings.

The 12kW high-voltage configuration provides 4 MPPT trackers, a maximum DC input voltage of 1000V and an input voltage range of 200–850V.

Communication & Monitoring

Depending on the configuration, the supplied specifications include:

  • CAN
  • RS485
  • Bluetooth
  • APP monitoring
  • Optional Wi-Fi
  • Optional GPRS
  • Optional LAN
  • 7.0-inch LCD on the supplied 8kW configuration

Protection & Installation

The supplied 8kW configuration features IP66 ingress protection, with operating temperatures from -40°C to +60°C, maximum operating altitude of 3000m, and a combination of natural and intelligent fan cooling.

Protection and monitoring functions include ground-fault monitoring, DC reverse-polarity protection and optional AFCI 2.0 according to the supplied specification.

Why Choose the Solis S6-EH Series?

The Solis S6-EH series is designed for users looking for a flexible hybrid solar inverter platform that can combine solar PV, battery storage and grid power while offering different capacity options.

With configurations ranging from 8kW to 12kW, the series provides options for different energy requirements, battery technologies, solar PV sizes and system architectures. Advanced features such as peak shaving, generator integration, customizable battery scheduling, MPPT tracking, backup power and remote monitoring make the series suitable for modern energy-storage installations.

Available Models

Model Power System Type Battery
Solis S6-EH1P8K-L-PLUS 8kW Hybrid Li-ion / Lead-acid, 40–60V
Solis S6-EH1P(3-10)K-L-PLUS Up to 10kW configuration Single Phase Hybrid Li-ion / Lead-acid, 40–60V
Solis S6-EH3P12K-H 12kW High-Voltage 3-Phase Hybrid High-Voltage Lithium-ion
Additional Information
Additional Information
x
Technical Specifications 8kW – Solis S6-EH1P8K-L-PLUS Parameter Specification Model S6-EH1P8K-L-PLUS Rated Power 8kW Recommended Max. PV Array 16kW Battery Voltage Range 40–60V Battery Type Li-ion / Lead-acid Max. Charge / Discharge Power 8kW Max. Charge / Discharge Current 135A / 190A* Battery Communication CAN / RS485 Rated Grid Output Power 8kW Max. Apparent Grid Output 8kVA Rated Grid Voltage 220V / 230V Grid Frequency 50Hz / 60Hz Grid Input Voltage Range 187–253V Max. Grid Input Current 50A Rated Backup Output 8kW Backup Surge 2× rated power for 10 seconds Backup Switch Time <4ms* Max. AC Passthrough Current 50A Max. Efficiency 96.2% EU Efficiency 96.1% Operating Temperature -40 to +60°C Protection IP66 Dimensions 335 × 560 × 253mm Weight 23.5kg Cooling Natural + intelligent fan cooling Maximum Altitude 3000m Display 7" LCD Monitoring Bluetooth + APP Communication RS485, CAN Optional Communication Wi-Fi, GPRS, LAN PV Connection MC4 Plug Battery Connection Terminal Block AC Connection Terminal Block 10kW – Solis S6-EH1P10K-L-PLUS Parameter Specification Model S6-EH1P10K-L-PLUS Rated Power 10kW Recommended Max. PV Array 20kW Max. Usable PV Input Power 16kW Max. PV Input Current 42A / 42A Max. Short-Circuit Current 48A / 48A MPPT 2 MPPT Input Strings 4 MPPT Voltage Range 90–435V Max. Charge / Discharge Power 10kW Max. Charge / Discharge Current 210A Battery Type Li-ion / Lead-acid Battery Voltage 40–60V Rated Grid Output 10kW Max. Apparent Grid Output 10kVA Rated Grid Output Current 45.5A / 43.5A Max. Grid Input Current 65A Rated Backup Output 10kW Rated Backup Current 45.5A / 43.5A Rated Grid Voltage L/N/PE, 220V / 230V Protection IP66 The current Solis product page confirms the S6-EH1P(3-10)K-L-PLUS family covers the 8kW and 10kW class and has two integrated MPPTs, 40–60V low-voltage battery operation, generator compatibility, parallel operation and IP66 protection. 12kW – Solis S6-EH3P12K-H Parameter Specification Model S6-EH3P12K-H Inverter Type High-Voltage Hybrid Rated Power 12kW System Type Solar + Battery + Grid Output Three Phase Efficiency Up to 98.5% MPPT 4 MPPT Trackers Max. DC Input Voltage 1000V Input Voltage Range 200–850V Battery High-Voltage Lithium-ion Max. PV Input Capability Up to 160% of rated DC power* Backup / Switching Model-specific Protection IP66 Parallel Operation Up to 6 units* Monitoring SolisCloud / APP Display 7" LCD Communication CAN / RS485 / Bluetooth Current Solis Pakistan documentation for the S6-EH3P(5-12)K-H family lists up to 160% PV input capability, <10ms on/off-grid switching, up to 6 units in parallel, generator-side support and IP66 protection.
Shipping & Return
Shipping & Return
x
Shipping Orders are shipped according to product availability and the delivery options available at checkout. Returns & Exchanges Return or exchange requests are handled according to CH Power Solutions' return policy. Products must meet the applicable return conditions. Damaged or Incorrect Product If you receive a damaged, defective, or incorrect product, please contact CH Power Solutions with your order details so the issue can be reviewed.
Custom Tab
Custom Tab
x
Applications & System Compatibility Residential Solar Systems Suitable for residential hybrid solar installations requiring solar generation, battery storage, grid integration and backup power. The 8kW and 10kW configurations use the low-voltage 40–60V battery architecture, while the 12kW S6-EH3P12K-H uses a high-voltage lithium battery system. Commercial & Small Business Systems The higher-capacity 10kW and 12kW configurations can be used for larger residential and commercial energy-storage applications where higher output and storage capacity are required. Solar + Battery Storage The inverter can coordinate solar PV generation with battery storage and grid power to improve energy utilization and provide backup power. Generator Integration The S6-EH1P(3-10)K-L-PLUS family supports generator compatibility and multiple generator connection/control functions. The S6-EH3P(5-12)K-H family also supports grid-side generator access for appropriate system configurations. Peak Shaving & Energy Management The supplied 8kW information includes Self-Use and Generator modes with peak shaving control, as well as customizable charge/discharge scheduling. Backup Power Use the inverter with a suitable battery system to supply backup loads during grid interruptions. Exact backup power, surge capacity and switching time vary by model and configuration. Monitoring & Communication Depending on model, monitoring and communication options include: CAN, RS485, Bluetooth, APP, optional Wi-Fi, GPRS and LAN. The Solis low-voltage series also supports SolisCloud/remote management features on current product documentation. Installation The supplied specifications include IP66 protection for the relevant models, making them suitable for appropriately designed indoor or outdoor installations. Installation must follow the applicable Solis documentation and electrical requirements.

Related Products

Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00
Example product title
From Rs.318,000.00
From Rs.318,000.00

Recently Viewed Products
